Additional information
| Part Number | WBL520FI |
|---|---|
| Rating | 20A/125V |
| Pole | 2 |
| Wire | 3 |
| Wire Size | 18~10AWG |
| Cable OD | .300" to .650" |
| Material | PC+Nylon, Brass |
| Color | White Body |

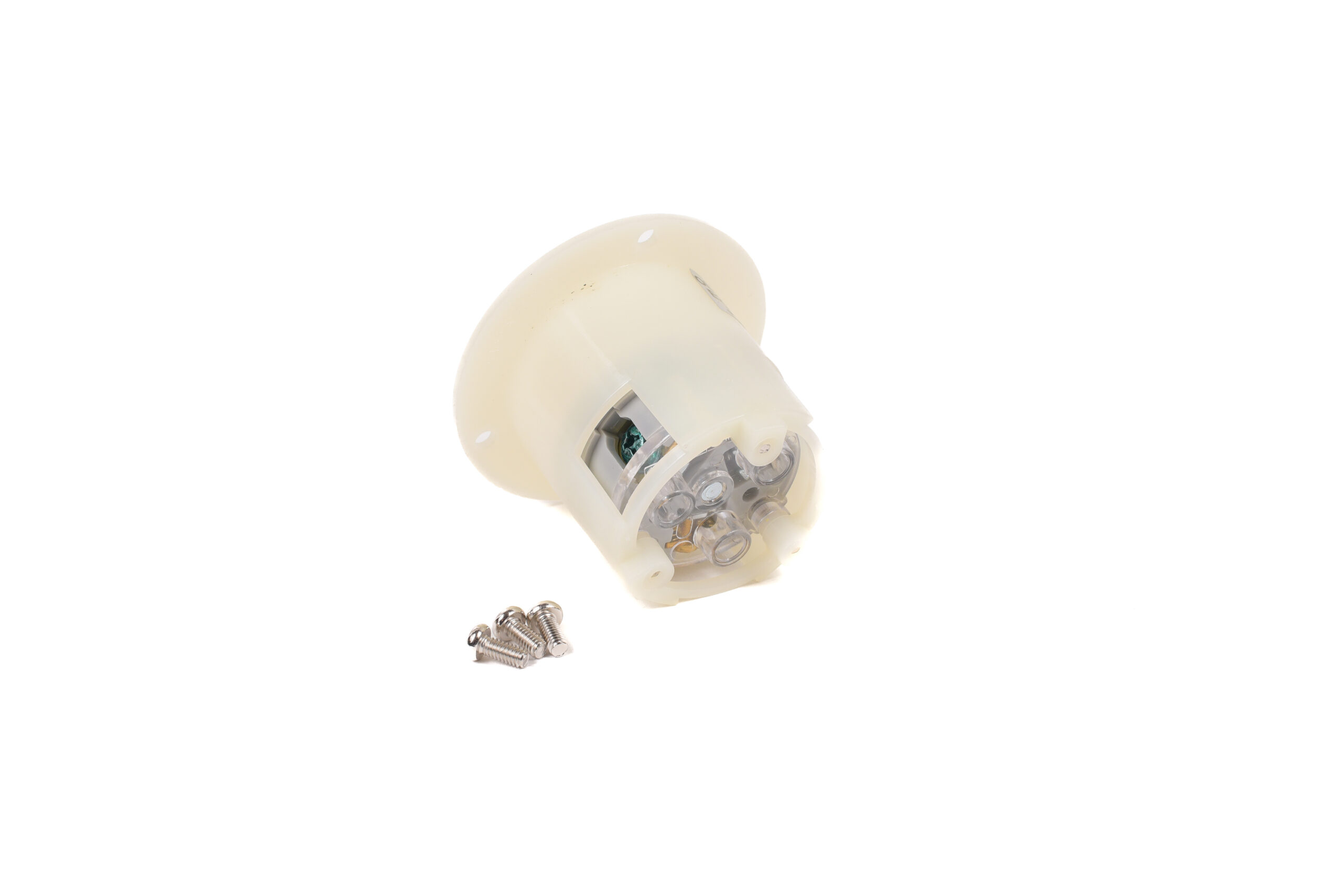

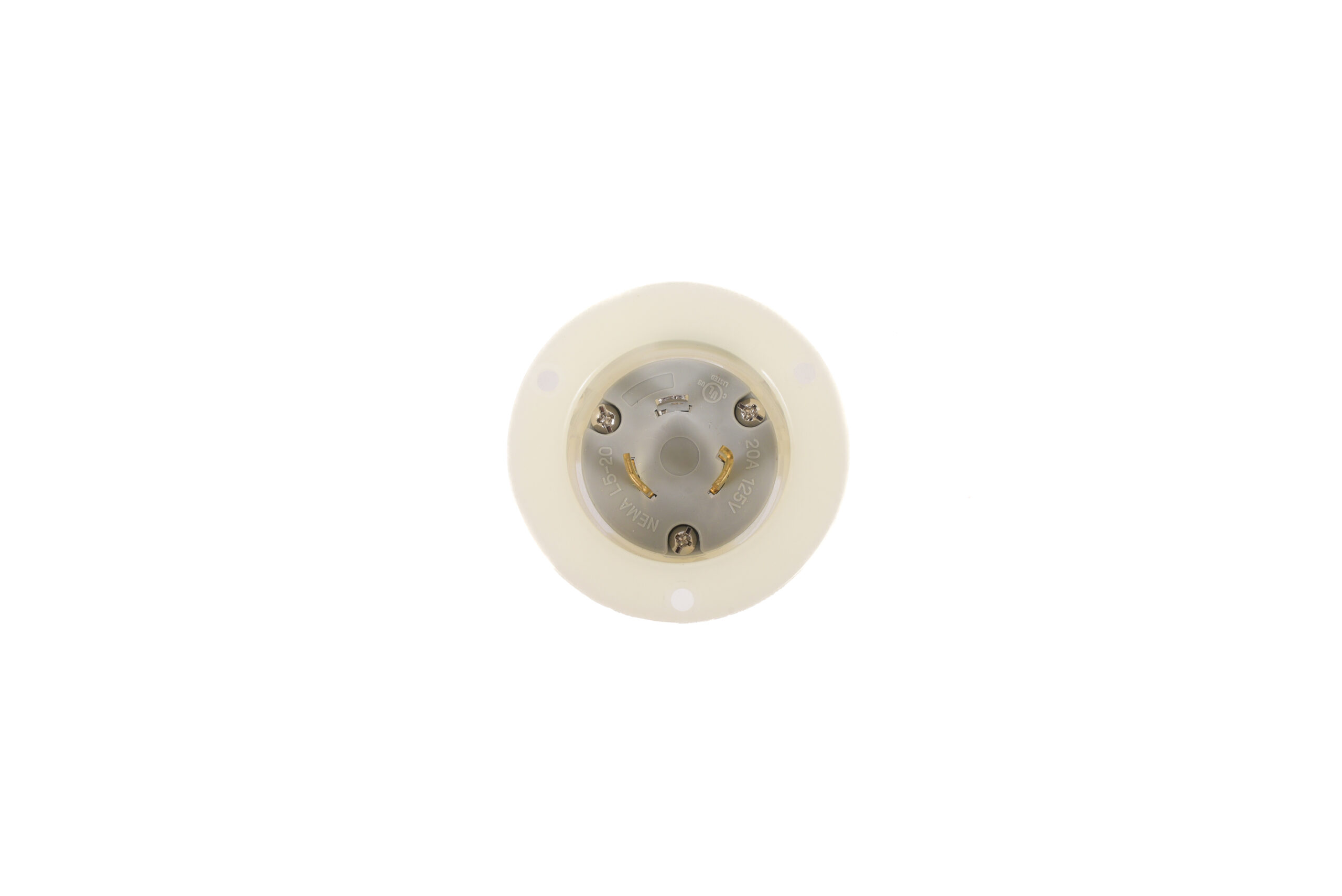

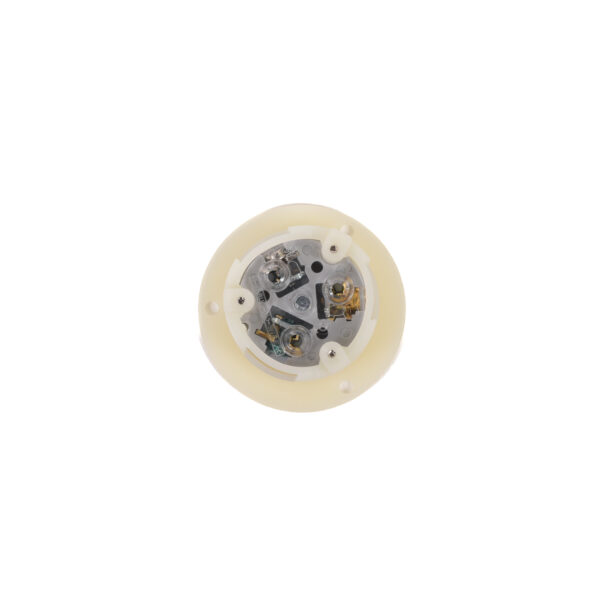

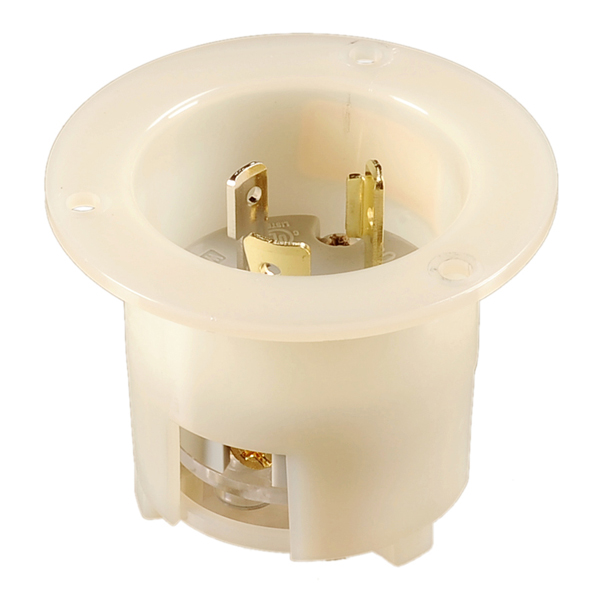

TWIST-LOCK NEMA L5-20 Flanged Inlet
$7.60
WBL520FI20A/125V, 2 Pole/3 Wire, Locking, Quality Nylon Construction, White, Easy-to-follow Installation Instructions, UL/cUL and RoHS Compliant
Please contact us for a higher volume quote.
Description
Webber’s Flanged Inlets & Outlets are available to fit a wide range of Straight Blade & Twist-Lock Plugs and Connectors NEMA configurations. The 15 Amp versions are made of durable Nylon material & the 20 Amp and higher are made of a Poly-Carbonate & Nylon material. These products are available in 15 Amp to 30 Amp & 125 Volt to 250 Volt options. These devices feature Isolated see-thru Wiring Chambers which helps prevent arcing & flashover during installation of wires for a solid connection. You can find detailed assembly instructions on the Document tab of each specific product listing. All our wiring Devices meet UL. cUL and RoHS standards.
