Additional information
| Part Number | WB620RAP |
|---|---|
| Rating | 20A/220V |
| Pole | 2 |
| Wire | 3 |
| Wire Size | 18~10AWG |
| Cable OD | .300" to .650" |
| Material | PC+Nylon, Brass |
| Color | Black Body & White Insert |

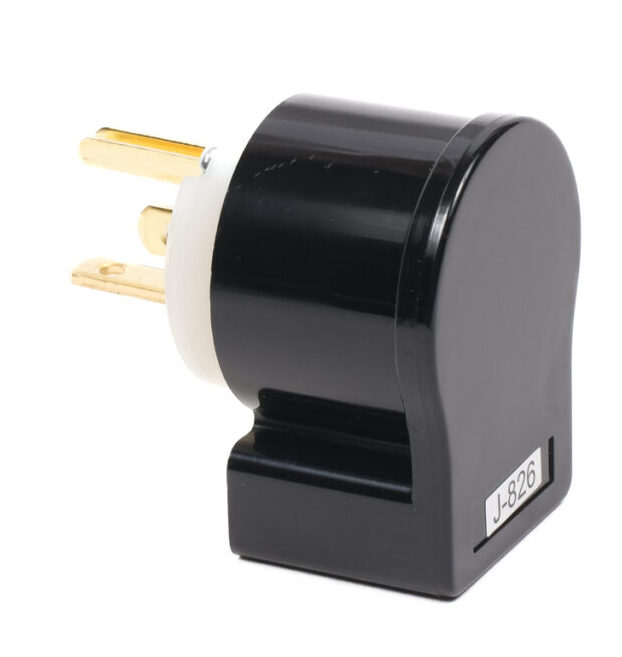

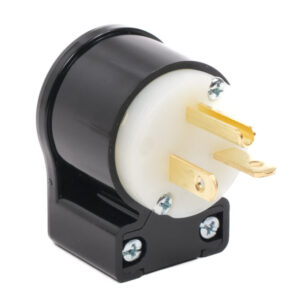

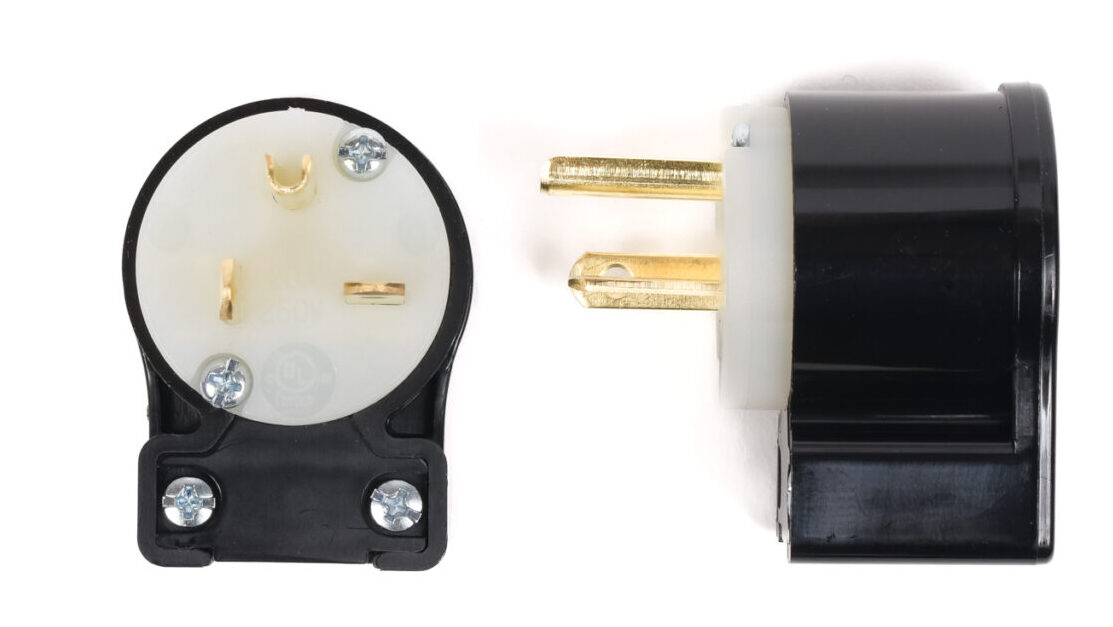

Angled NEMA 6-20P Straight Blade Plug – 8 Angled Positions
$7.15
WB620RAP20A/220V, 2 Pole/3 Wire, Angled, Quality Nylon Construction, Clear & White, Easy-to-follow Installation Instructions, UL/cUL and RoHS Compliant
Please contact us for a higher volume quote.
Description
Webber’s Angled NEMA 6-20P Attachable Replacement Plug comes with easy-to-follow Installation Instructions. Our unique, angled design allows for use in 8 different configurations to meet almost any application you may need. This device features Isolated see-thru Wiring Chambers which helps to prevent arcing & flashover during installation of wires for a solid connection. There is an adjustable rear Cord Clamp for attaching a variety of wire sizes (accepts 18~10 AWG). This Grounded 3 Wire, 20 Amp/220 Volt Plug is designed for Commercial and Residential uses. This Wiring Device features high quality, durable nylon construction material and solid brass blades. All our wiring Devices meet UL. cUL and RoHS standards.
